Pwn the LIFX Mini white

0.1 The Device

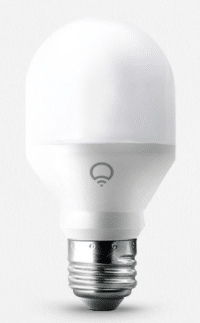

LIFX mini White

Bought on Amazon (30 euros).

The lightbulb is plugged. LIFX app is installed on an Android smartphone. Wi-Fi connection is set. The lightbulb works fine.

Wunderbar, easy setup.

0.2 The Teardown

Butcher mode activated:

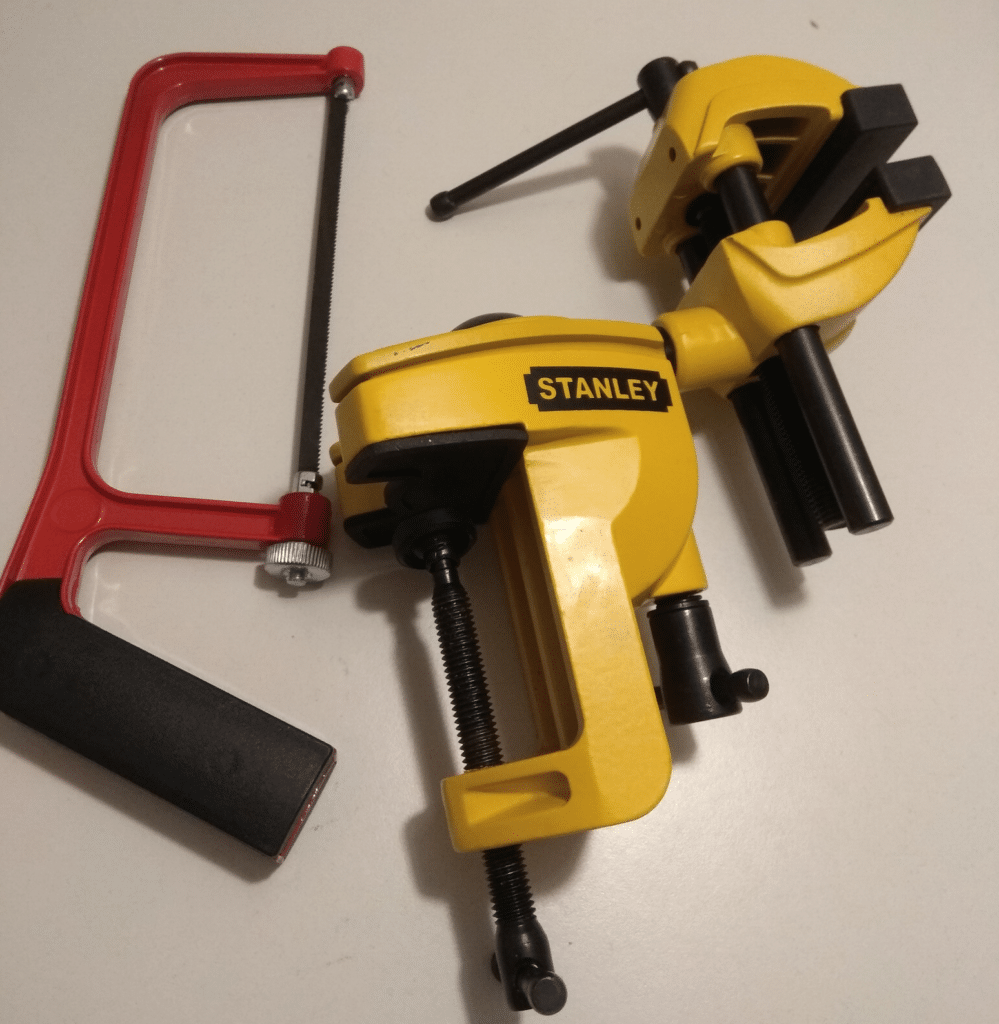

Classic tools for hardware hacking

Work in progress:

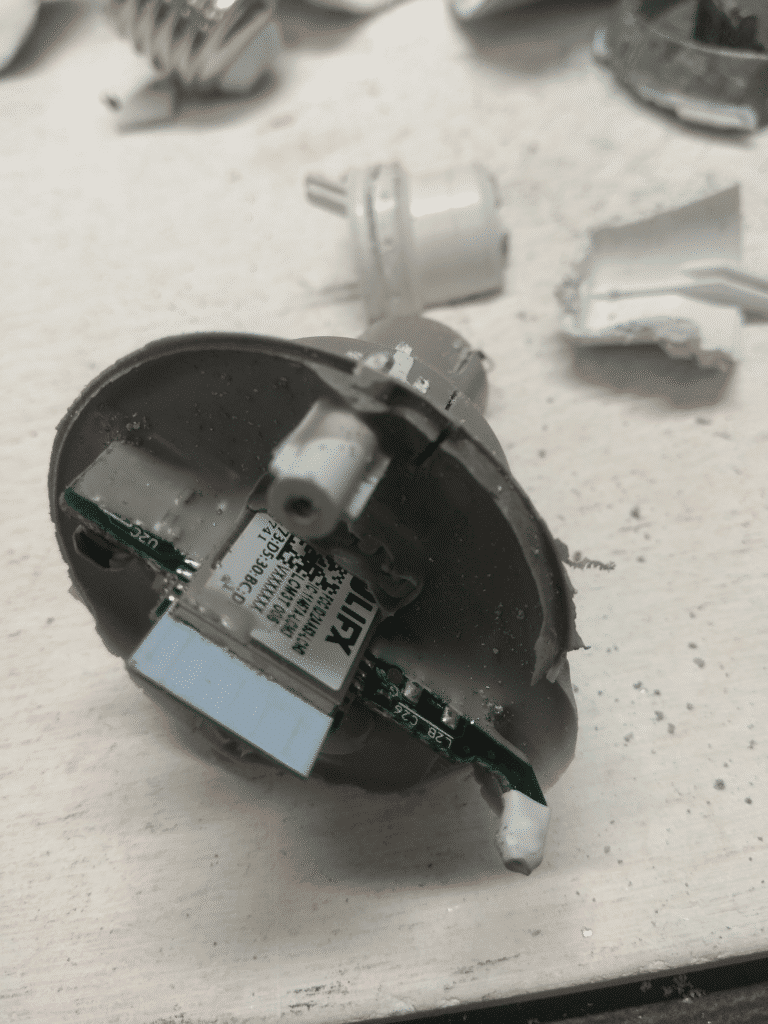

Fireproof paste all around

The most difficult is to clean the board and remove this paste.

0.3 The Setup

The major component of the module is identified as ESP32D0WDQ6, a SoC from ESPRESSIF.

Datasheet is available here.

SDK & Tools are also available on GitHub.

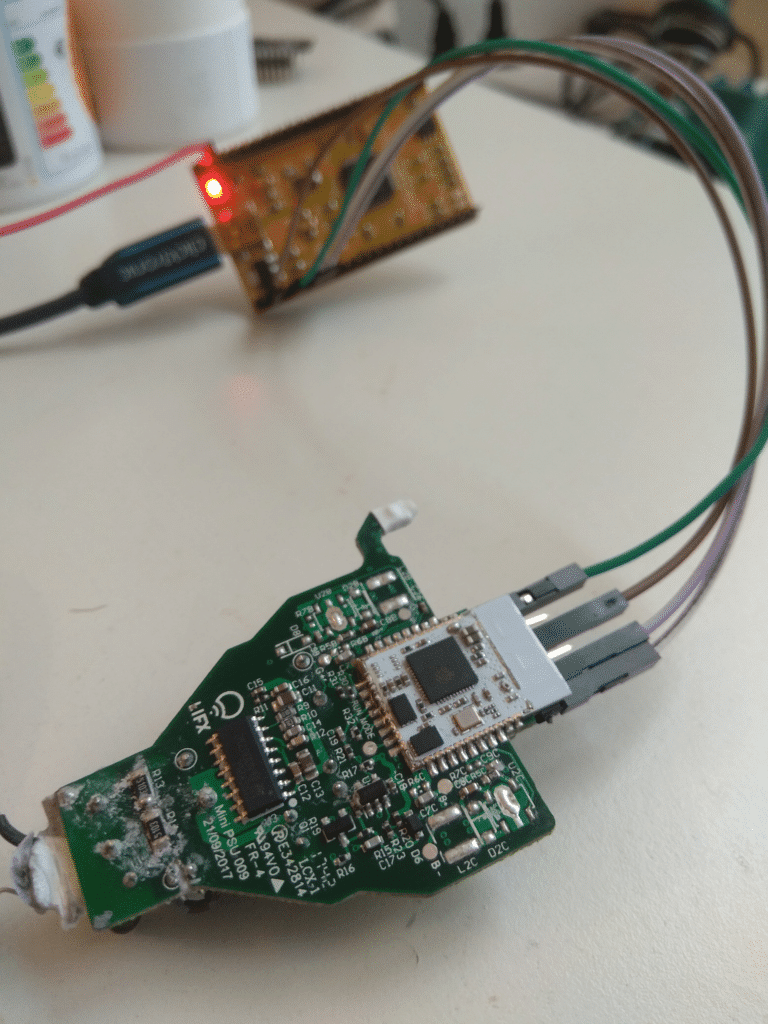

Some pins are soldered to easily connect with a FT2232H board. A little bit of PCB Reverse is needed.

Simple setup

Connections from top to bottom = GND, VCC 3.3V, ADBUS0, ADBUS1.

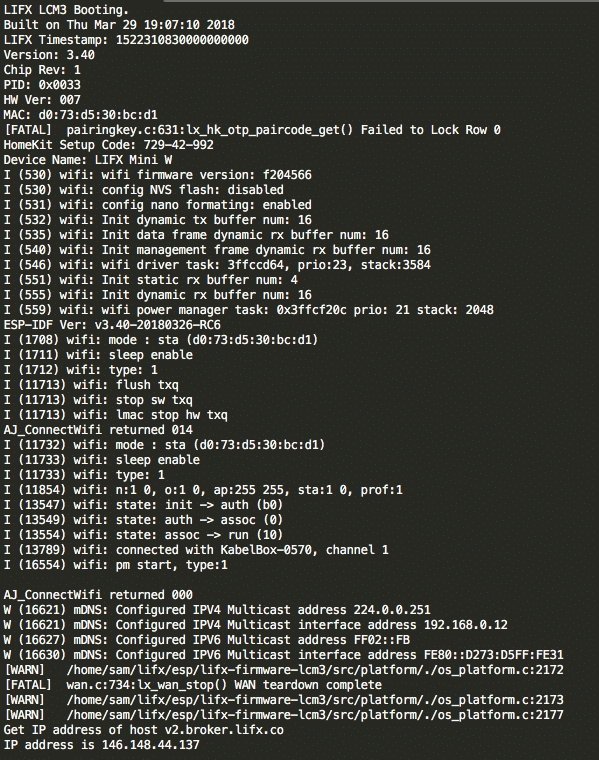

Once VCC is powered, the LIFX LCM3 is booting:

UART activity during boot. It connects directly to the SSID (here KabelBox-0570)

0.4 Vulnerability n*1: Wi-Fi credentials stored in plaintext into the firmware

Dumping the firmware is straightforward. ESP32 is set in Download Mode:

Download mode activated

then launch the read flash command from esp-tool to access the content of the memory:

esptool.py -p /dev/ttyUSB0 -b 460800 read_flash 0 0x200000 flash.bin

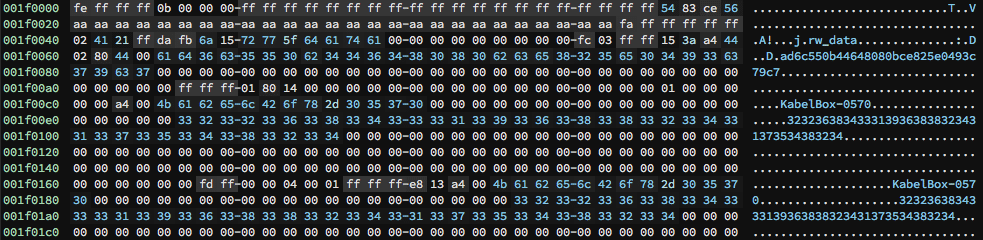

A simple research into the binary file flash.bin using an hex editor or even string|grep command is enough to retrieve the Wi-Fi credentials.

WPA2 key is stored in plaintext (ASCII encoded)

0.5 Vulnerability n*2: No security settings (at all)

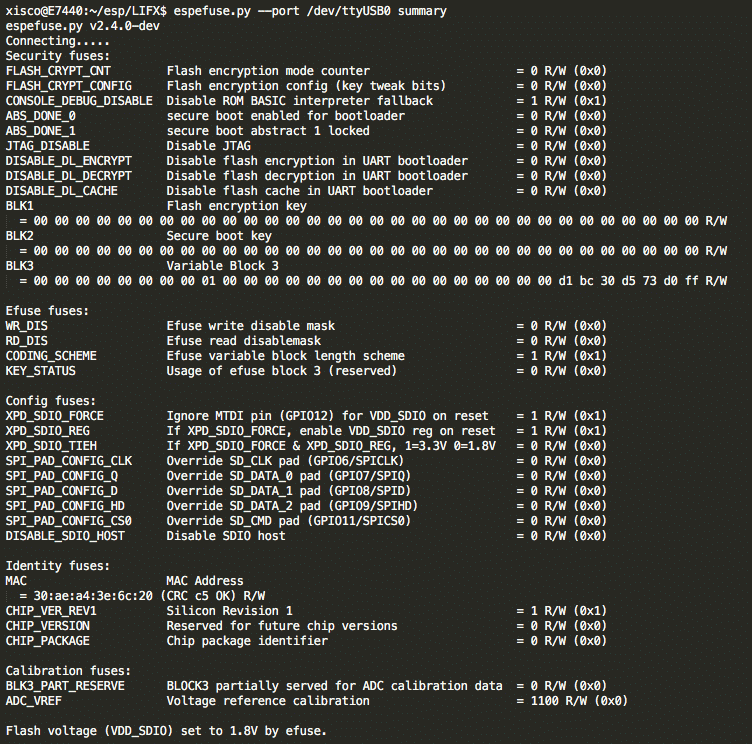

To check the device configuration , E-fuses values are dumped:

espefuse.py --port /dev/ttyUSB0 summary

Efuses content

According to the values, this device is totally open (no secure boot, no flash encryption, no JTAG disabled).

0.6 Vulnerability n*3: Root certificate and RSA private key extracted

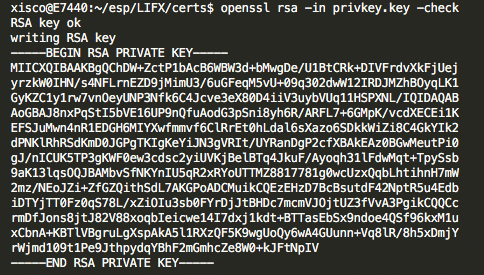

Root certificate and RSA private key are present into the firmware and are used to connect to LIFX cloud.

Oh Jesus...

enjoy

I decided to stop the investigation after that.

0.7 Conclusion

In a very short limited amount of time, three vulnerabilities have been discovered:

• Wifi credentials of the user have been recovered (stored in plaintext into the flash memory).
• No security settings. The device is completely open (no secure boot, no debug interface disabled, no flash encryption).
• Root certificate and RSA private key have been extracted.

0.8 Disclosure

• 24/05/2018: E-mail to LIFX. Want to discuss with their engineering team, asking for PGP keys.
• 03/10/2018: No PGP keys, no feedback from LIFX during 4 months. Report finally sent via e-mail.
• 04/10/2018: Acknowledgement from LIFX.
• 17/10/2018: LIFX team confirms the vulnerabilities, asks for a call and a 150 days disclosure.
• 23/10/2018: Call with LIFX team. 90 days disclosure agreement.
• 23/01/2019: Posted.
• 30/01/2019: LIFX statement here.
